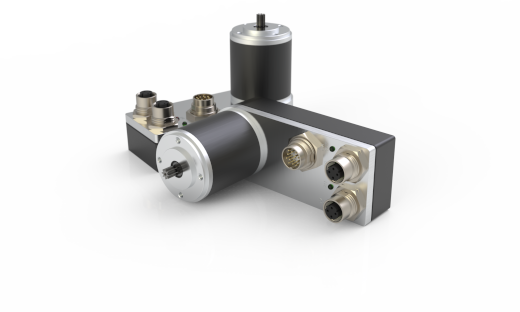

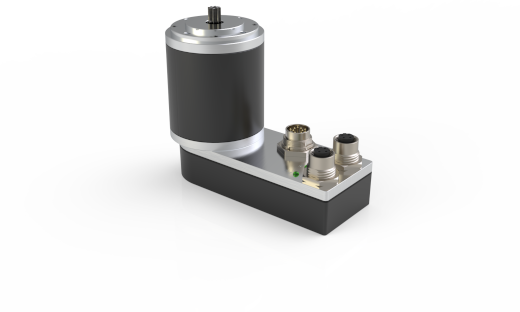

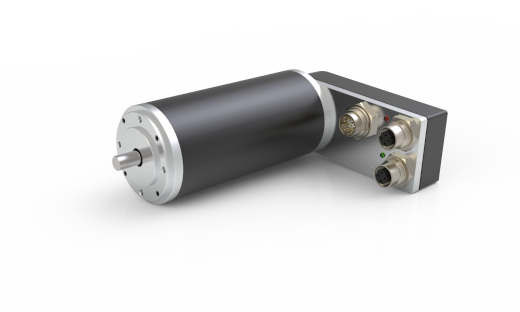

INTEC PCS 150

Features

  • Speed, position and interpolation applications
  • Field-Oriented-Control (FOC)
  • Integrated single-turn absolute encoder
  • High accuracy of speed and position control loops
  • Multi-turn absolute encoder as option
  • High quality planetary gear as an option

Specifications

  • Supply voltage24 Vdc
  • Rated power30 - 150 W
  • Rated torque0,06 - 0,36 Nm
  • Rated speed4000 rpm
  • Positioning accuracy< 0,6°

Data sheet

Data sheet PCSi 150

Mechanical drawing

On request
